How to connect and configure CRKD Les Paul on RPCS3 (multiplat edition).
Platform
Controller

NOTES

  • CRKD Les Paul guitars can be connected wirelessly via its respective dongle, Bluetooth, and wired via USB. For Bluetooth, you need a Bluetooth receiver to connect to your computer.
    • Dongle or wired USB are the recommended methods.
  • To rebind your guitar, use the CRKD app on your phone (iOS/Android).

How do I set up gamepad up?

    Click on the Pads icon at the top of RPCS3.

    A screenshot of RPCS3, showing the cursor over the Pads menu.

    Follow the instructions and/or match the assignments below.

    A picture showing how the instrument page and RPCS3 can be used as a mapping reference.

Pad Information

Handlers Devices
XInput XInput Pad
Device Class Device Subtype
Guitar Rock Band

PC - Mode 8

  • This is the recommended mode to set your guitar to.
Make sure your guitar and receiver are on the latest firmware!

CRKD App Setup

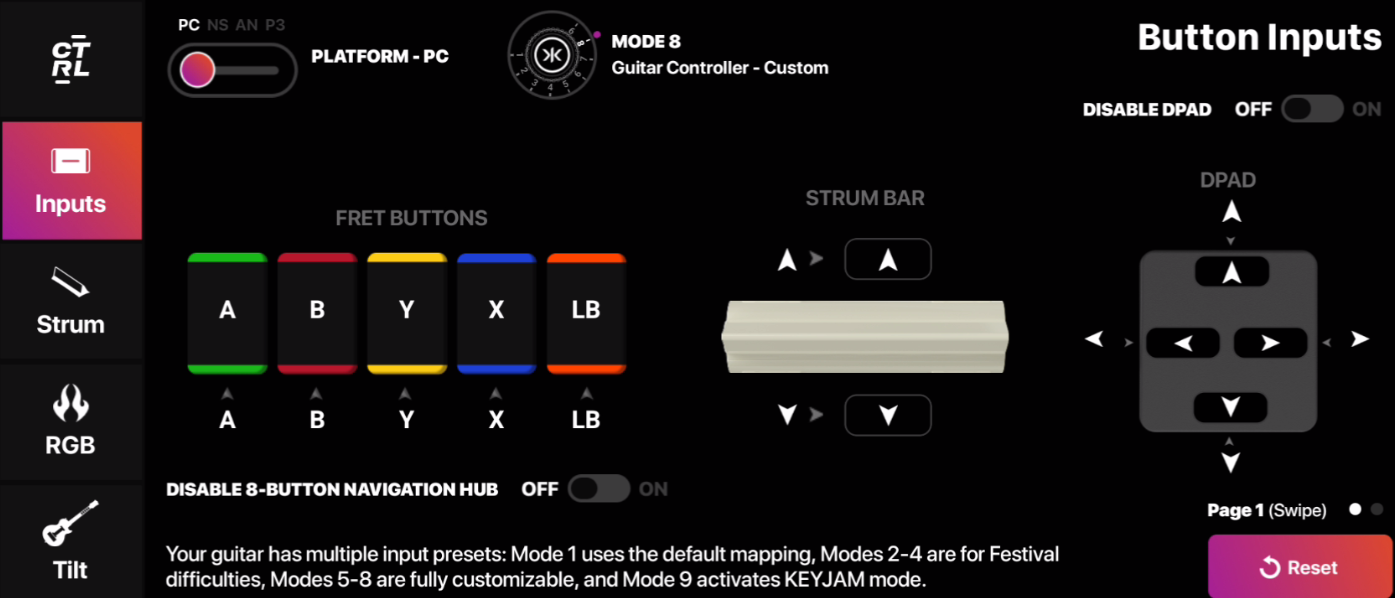

The first page of the CRKD CTRL application. The guitar is configured for PC and it's set to Mode 8.

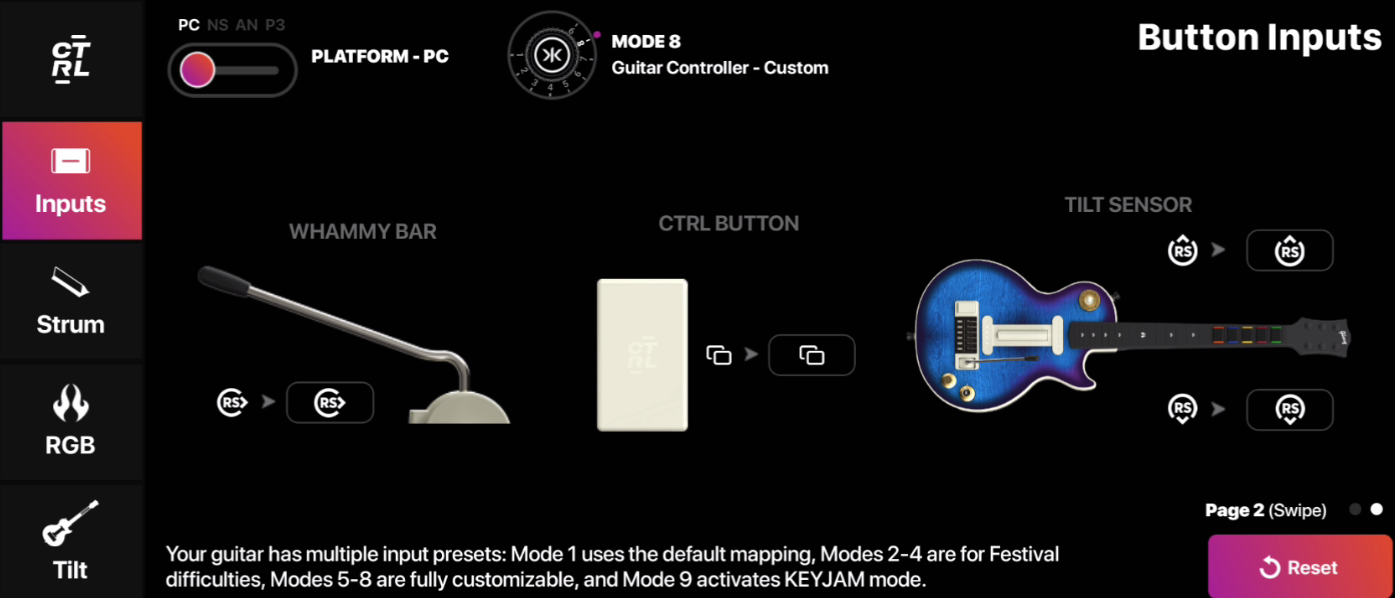

The second page of the CRKD CTRL application.

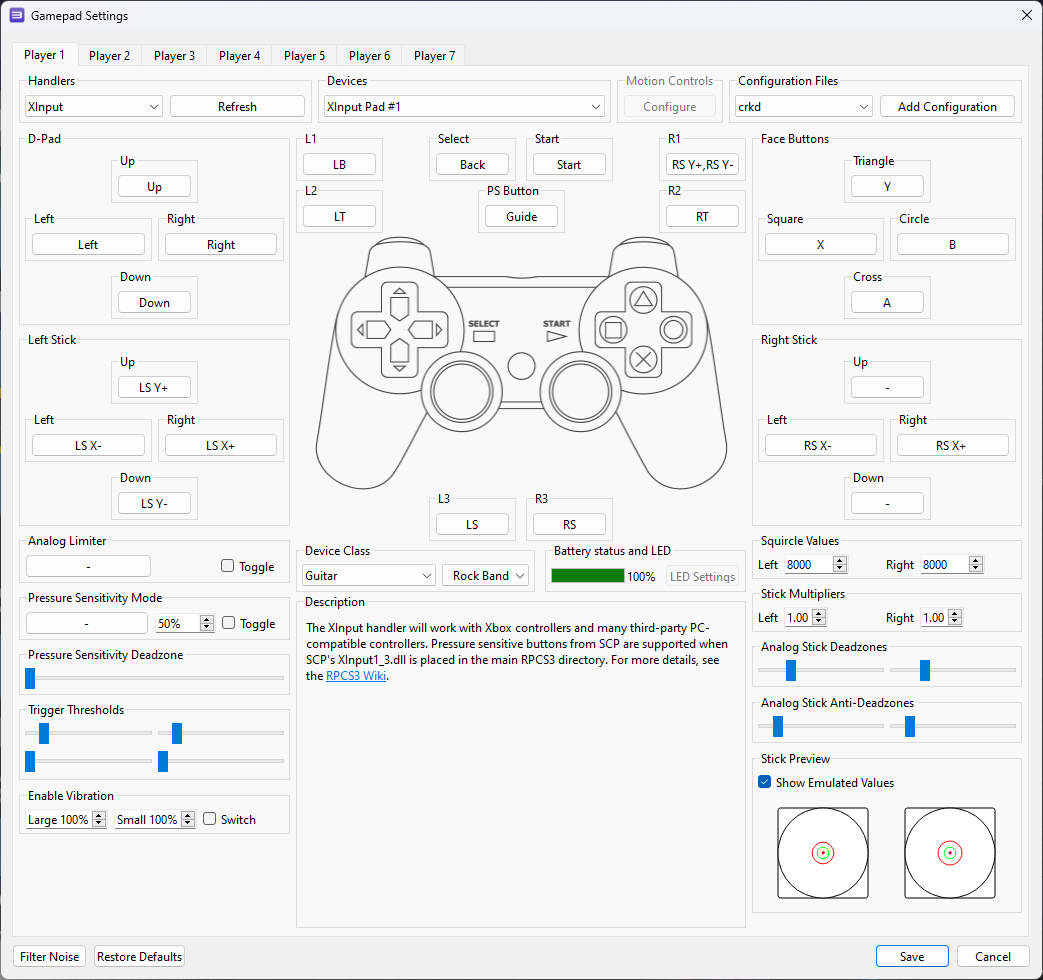

Mapping

By default, XInput has most things bound correctly. You only need to remap the following:

  • Map the following:
RPCS3 XInput Guitar
R1 Right Stick Tilt

Profile

[Download Profile]

How do I use profiles?

    This is not recommended if you're using multiple controllers at once.

    After downloading the profile,

    1. Extract the .7z file.
    2. Drag the input configs folder into the configs folder where you have RPCS3 in.

    A GIF of a user dragging the Wii Rock Band Guitar configuration into their RPCS3 folder.

    After that, you can select the profile in the “Pads” menu.

    A screenshot of RPCS3's Gamepad Settings, showing the cursor over a profile.

    Most of the time, these controller profiles should work out of the box. If they don’t, try changing the controller listed in “Devices”, next to the “Refresh” button until it receives an input. You can edit this while the game is running.

Mapping

Mode 1

    Pad Information

    Handlers Devices
    XInput XInput Pad
    Device Class Device Subtype
    Guitar Guitar Hero

    PC Mode

    • This is the recommended mode to set your guitar to.

    CRKD App Setup

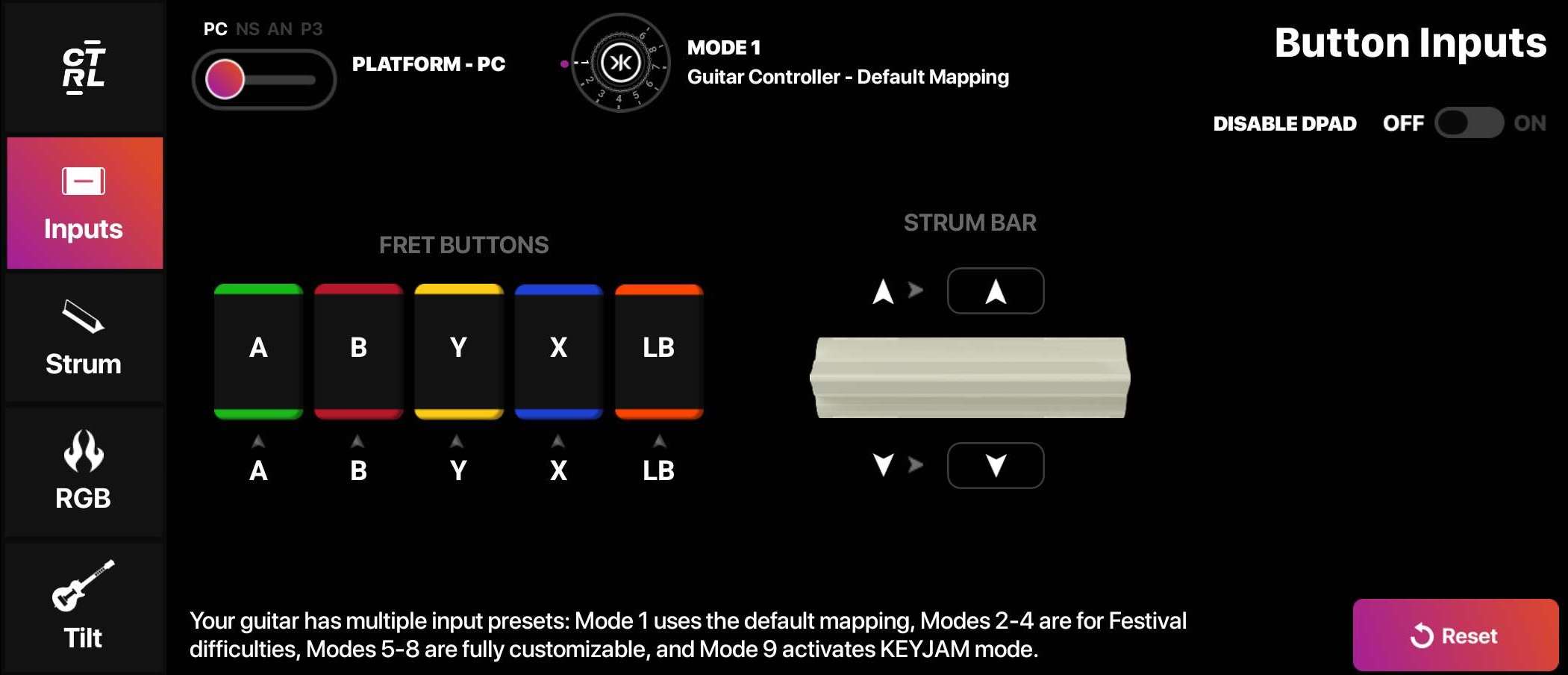

    A screenshot of the CRKD CTRL application. The guitar is configured for PC and it's set to Mode 1, which is the default mapping. Disable DPad is Off.

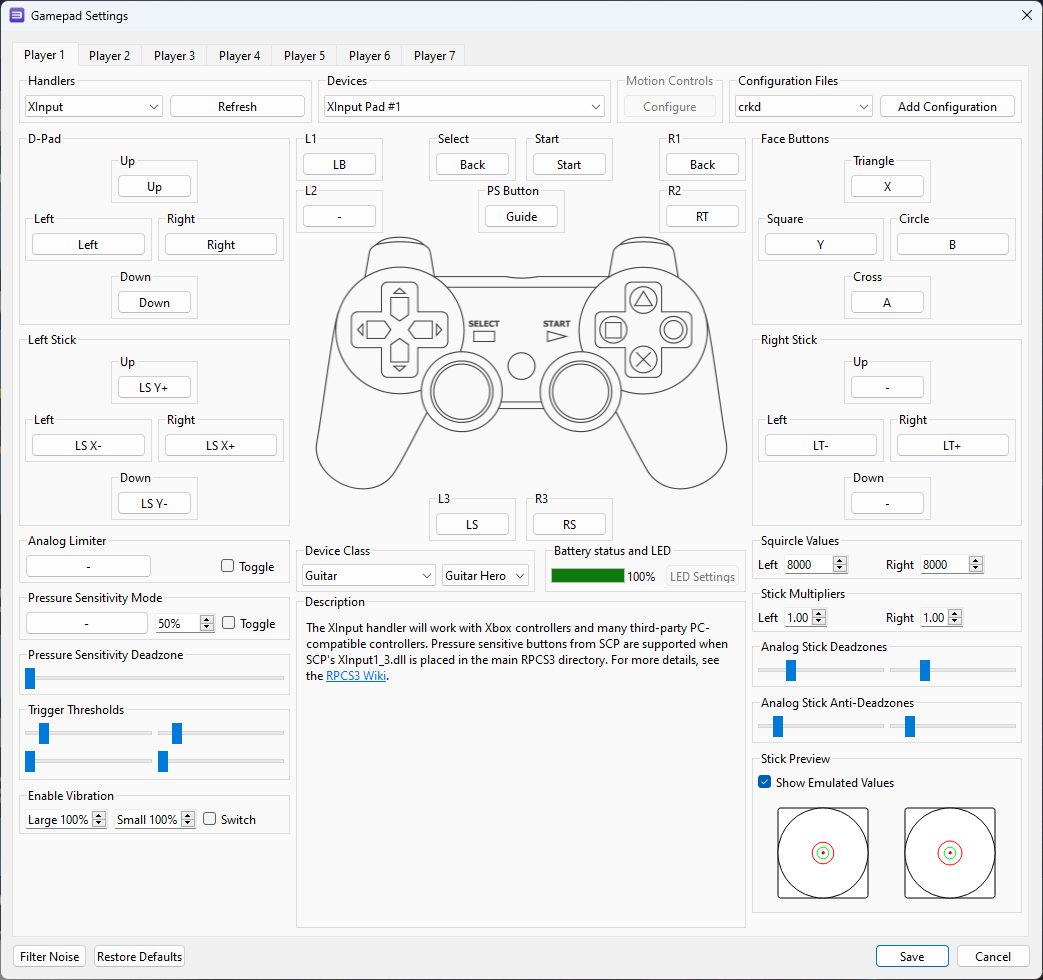

    Mapping

    By default, XInput has most things bound correctly. You only need to remap the following:

    • UNMAP THE FOLLOWING or guitar solos will auto-strum and the effects selector will constantly be moving!
      • Use Right Click to unmap a button.
    RPCS3 Guitar
    L2 Solo Modifier
    • Map the following:
      • For the whammy bar, hold ALT then left click on Right Stick: Left then Right Stick: Right to set negative and positive ranges.
    RPCS3 XInput Guitar
    Square Y Button Yellow Fret
    Triangle X Button Blue Fret
    R1 Back Tilt
    Right Stick:
    Left/Right    		 Left Trigger Whammy Bar

    Profile

    [Download Profile]

    Mapping

[Back to Controllers]

Research by [gonakil1ya]
